Nike Missile Site LA-94 IFC, Los Pinetos / Newhall California

LA-94 was the Newhall ridge battery that watched both the San Fernando and Santa Clarita valleys. It was isolated, high, fire-prone, and important enough to be converted to Hercules, but not important enough to survive the late-1960s drawdown.

LA-94 stood at Los Pinetos / Newhall in the western San Gabriel Mountains, above the Santa Clarita and San Fernando Valley approaches. It was one of the Angeles National Forest Nike sites, along with Mount Gleason, Mount Disappointment / Barley Flats, and Magic Mountain / Lang.

The Los Angeles Defense Area was one of the largest and most complex Nike air-defense networks in the United States. By the late 1950s, Los Angeles was ringed by sixteen Nike batteries. The defended area included the port and shipyards, Los Angeles and Long Beach industrial districts, aircraft plants, communications and transportation corridors, nearby military installations, and a major share of the nation's aerospace industry.

Nike batteries were the Army's final layer of continental air defense. Air Force warning radars and interceptor aircraft were supposed to meet enemy bombers farther out. If bombers reached the target region, the Nike batteries around Los Angeles would use ground-based radar, analog fire-control computers, and surface-to-air missiles to attempt an intercept.

Most Los Angeles sites began as Nike Ajax batteries. Ajax was a liquid-fueled, command-guided missile with a conventional warhead. Selected sites were later converted to Nike Hercules, a larger, solid-fueled, longer-range missile that could carry either conventional or nuclear warheads. The Los Angeles Hercules-converted sites were LA-04, LA-29, LA-32, LA-43, LA-55, LA-78, LA-88, LA-94, and LA-96. The Ajax-only sites were LA-09, LA-14, LA-40, LA-57, LA-70, LA-73, and LA-98.

A Nike battery was normally a split installation. The Integrated Fire Control area, or IFC, contained radar, computer, command, communications, and generator equipment. The launch area contained underground magazines, elevators, launchers, missile assembly and test facilities, security structures, roads, utilities, and support buildings.

Site Configuration and Decoded Meaning

Decoded meaning: The launch area had three underground magazines total, one Type B and two Type C. The authorized missile load was 18 Nike Hercules missiles and 30 Nike Ajax missiles. The 12L-UA ending indicates a mixed universal/Ajax launcher arrangement in the converted Hercules-era configuration.

Site History and Setting

The site was converted from Ajax to Hercules, which means it saw the full arc of Nike missile development in the Los Angeles mountains. Angeles Adventures describes it as a remote outpost that, like Mount Gleason, moved from the Ajax era into nuclear-capable Hercules service.

The Los Angeles overview records a site-specific fire episode at LA-94. Seven years after the 1959 Mount Disappointment fire watch, Battery A, 4th Missile Battalion, 65th Artillery had to protect LA-94 as flames approached Los Pinetos.

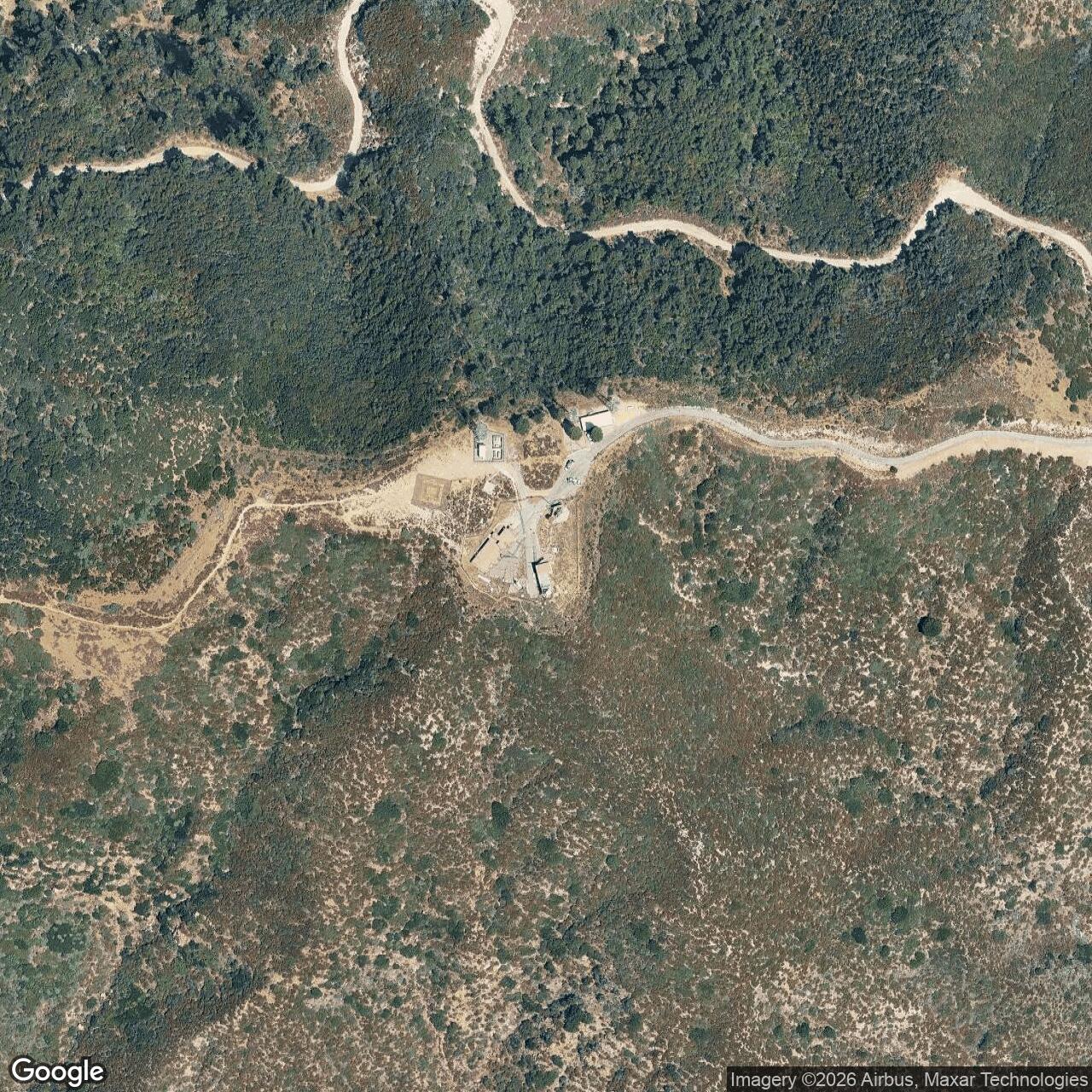

Sources describe the control area as intact in a Los Angeles County Fire Camp Number 9 and communications-relay context, on a high ridge with buildings in excellent condition and radar towers visible on a nearby peak. The launch area is described as a fenced high-ridge site, now in U.S. Forest Service use, with buildings in good repair and magazines probably surviving.

Units and Manning

Nike duty at LA-94 would have centered on readiness rather than combat action. Crews maintained radar, communications, generators, launchers, elevators, missile test equipment, fuel or missile-handling systems, security fencing, vehicles, and fire-control procedures. The site existed for an emergency that never came, but it had to be able to respond quickly if aircraft penetrated the outer air-defense screen.

Post-Closure and Current Status

The closure of LA-94 fits the broader decline of the Nike system. By the late 1960s and early 1970s, the Soviet bomber threat had been overshadowed by intercontinental ballistic missiles, while the cost of maintaining large labor-intensive air-defense batteries became harder to justify. LA-94 closed in 1968, LA-29 closed in 1971, and the remaining Los Angeles Hercules sites were removed from service in 1974. Ajax-only sites such as LA-09, LA-14, LA-40, LA-57, LA-70, and LA-73 had already closed earlier.

Chronology

• Early 1950s: The Army and Corps of Engineers selected permanent and alternate Nike sites around Los Angeles while gun batteries still formed part of the regional air-defense system.
• 1953: The Corps of Engineers Los Angeles District was obtaining properties for Los Angeles Nike batteries, using military property where possible and negotiating or acquiring non-DOD sites where necessary.
• 1954 to 1958: The permanent Los Angeles Nike ring came into operation, with Ajax batteries established around the basin, coast, mountains, and inland approaches.
• 1955: LA-94 entered active service.
• Late 1950s and early 1960s: Selected Los Angeles batteries were converted to Nike Hercules. LA-94 should be treated according to its specific system type above.
• November 1968: LA-94 was deactivated or removed from active Nike service.
• 1974: The remaining Los Angeles Nike Hercules sites were removed from service, ending the regional Nike mission.
