Nike Missile Site M-02 IFC, Milwaukee / Brown Deer Wisconsin

The Milwaukee Defense Area was created because Milwaukee was not merely a population center. In the 1950s it was a major industrial city, a Lake Michigan port, a railroad and highway hub, and part of the broader Great Lakes industrial belt. Its heavy manufacturing plants, machine shops, foundries, electrical-equipment firms, transportation links, harbor facilities, and proximity to Chicago made it part of a regional military-industrial target system. Local histories often describe Milwaukee in this period as the "Machine Shop of the World," and that description matters for the Nike story: the Army did not ring Milwaukee with missiles because of symbolism alone, but because the city and its surrounding industrial suburbs were considered useful wartime targets.

The immediate military problem was the Soviet long-range bomber threat. In the early 1950s, before intercontinental ballistic missiles dominated strategic planning, U.S. air-defense doctrine assumed that Soviet bombers might approach North America through northern routes, cross Canada or the Great Lakes region, and try to reach metropolitan and industrial targets. The Nike system was the U.S. Army's last-ditch point-defense layer within that larger continental air-defense system. Early-warning radars and interceptor aircraft were intended to detect and engage aircraft farther out. Nike batteries were positioned near the cities and installations that had to be protected if earlier layers failed.

Milwaukee received eight Nike batteries: M-02, M-20, M-42, M-54, M-64, M-74, M-86, and M-96. Headquarters facilities were in Milwaukee. The Chicago District of the U.S. Army Corps of Engineers oversaw land acquisition, design, and construction. The sites were first equipped with Nike Ajax missiles. Three batteries, M-02, M-20, and M-74, were converted to Nike Hercules. The remaining five remained Ajax-only and closed earlier. The Milwaukee Defense Area was later merged with the Chicago-Gary defense system in 1968, after which Milwaukee's remaining defense was tied more closely to the larger Chicago-Milwaukee air-defense complex.

Nike Ajax and Nike Hercules were not intercontinental missiles. They were surface-to-air interceptors. Their mission was to shoot down hostile aircraft, not attack ground targets. The Ajax system used liquid-fueled missiles with conventional warheads. Hercules was larger, solid-fueled, longer-ranged, and capable of carrying either conventional or nuclear warheads. Hercules conversion therefore represented a significant change in the tactical reach, destructive power, and safety profile of a battery. For Milwaukee, that conversion was concentrated at the River Hills/Brown Deer, lakefront/Harbor Drive, and Waukesha batteries.

How a Nike Battery Worked

Nike Ajax was a command-guided system. It did not search for targets on its own. Ground radar detected and tracked the target. A second radar tracked the missile after launch. A computer compared the target and missile tracks and sent steering commands to the missile. The intercept was therefore a coordinated action by the whole battery: acquisition radar, target-tracking radar, missile-tracking radar, fire-control computer, communications equipment, launch crews, and missile handlers all had to function together.

This split-site arrangement is why every site history below treats the IFC and launcher as one installation even when they are mapped as separate points. The launcher could not fight without the IFC, and the IFC had no purpose without the launch area. The battery was the combined system.

Site-Specific History and Setting

The site entered service in 1957. Like the rest of the Milwaukee Defense Area, it began as a Nike Ajax installation. M-02 was one of the three Milwaukee batteries selected for Nike Hercules conversion. Appendix D of Mary Cagle's Nike Hercules history lists M-02 among the converted defense sites, with a Hercules operational date of July 10, 1959. That conversion made M-02 one of the long-lived Milwaukee batteries, while the Ajax-only batteries were closed between 1958 and 1963.

M-02's configuration is listed as Nike 1B, 2C/18H, 30A/12L-U. This indicates a mixed magazine and launcher configuration associated with an Ajax-to-Hercules battery. The Hercules conversion required the launch area to support larger missiles and universal launch equipment, while the IFC had to support the radar and fire-control equipment needed for the improved system. Because Hercules missiles were solid-fueled and longer-ranged, the operational and safety requirements differed from the earlier Ajax period.

The battery remained active until June 1971. By then the strategic environment had changed dramatically. Long-range bombers remained a concern, but intercontinental ballistic missiles, submarine-launched missiles, and changes in national air-defense policy made many Nike batteries less useful and increasingly expensive to operate. Milwaukee's Nike defense had already been reduced to its Hercules sites. When M-02 and M-74 closed, the local Nike era effectively ended.

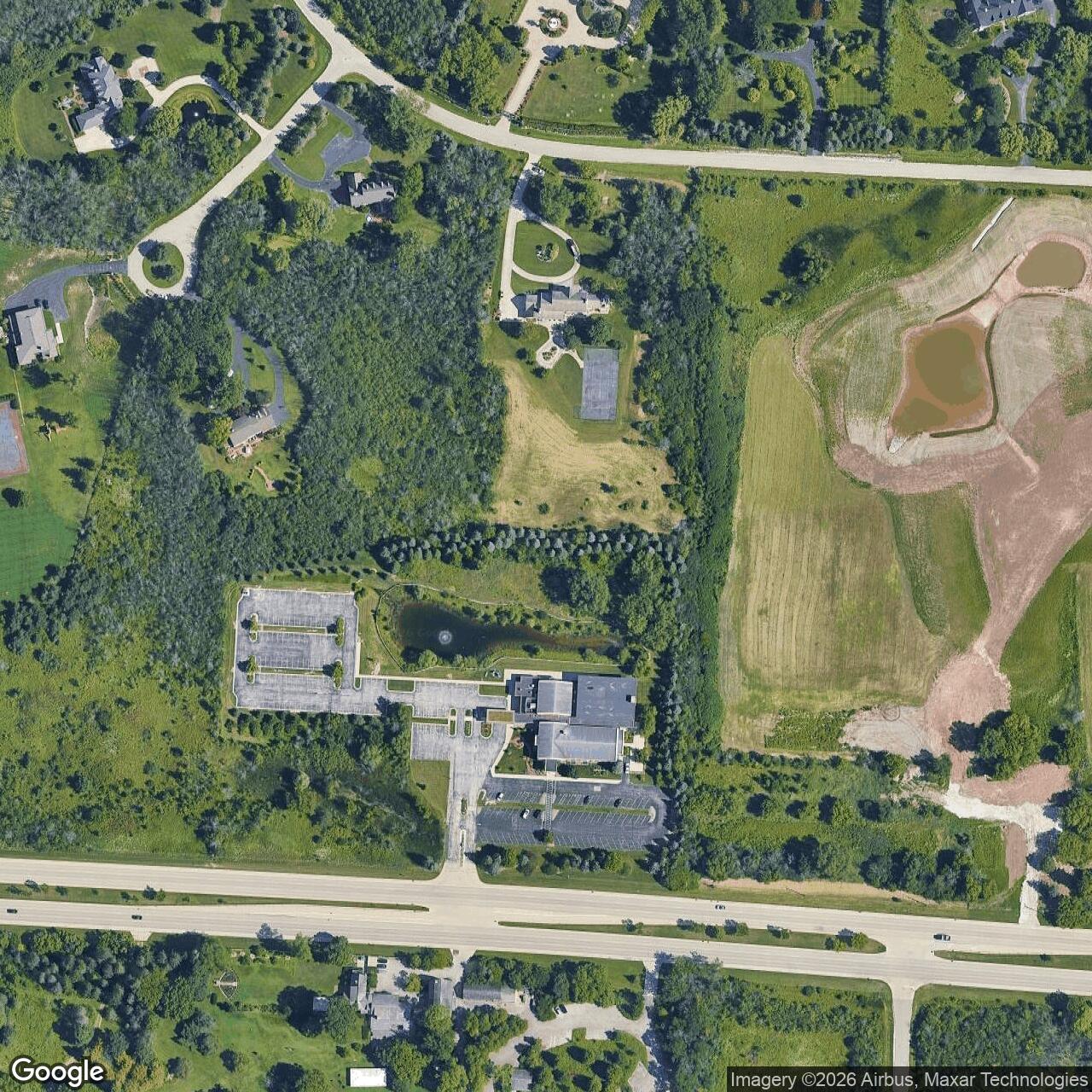

Post-closure, the M-02 landscape was absorbed back into suburban land use. Later site summaries describe the control area as woods and subdivision and the launch area as obliterated. That is consistent with the fate of many metropolitan Nike sites: the underground magazines were filled, removed, capped, or built over; buildings were demolished or repurposed; and the site's Cold War function became invisible beneath roads, yards, and private development.

Chronology

• 1957 M-02 became operational as a Nike Ajax battery in the Milwaukee Defense Area.
• 1958-1959 M-02 was converted for Nike Hercules service.
• 1959-07-10 Appendix D lists M-02 as operational with Nike Hercules missiles.
• 1968 The Milwaukee Defense Area was merged into the Chicago-Gary / Chicago-Milwaukee air-defense system.
• 1971-06 M-02 was deactivated, ending one of Milwaukee's last active Nike batteries.
• Post-1971 The control area became woods/subdivision and the launcher was obliterated or redeveloped.
