Nike Missile Site M-20 IFC, Milwaukee / Harbor Drive Wisconsin

The Milwaukee Defense Area was created because Milwaukee was not merely a population center. In the 1950s it was a major industrial city, a Lake Michigan port, a railroad and highway hub, and part of the broader Great Lakes industrial belt. Its heavy manufacturing plants, machine shops, foundries, electrical-equipment firms, transportation links, harbor facilities, and proximity to Chicago made it part of a regional military-industrial target system. Local histories often describe Milwaukee in this period as the "Machine Shop of the World," and that description matters for the Nike story: the Army did not ring Milwaukee with missiles because of symbolism alone, but because the city and its surrounding industrial suburbs were considered useful wartime targets.

The immediate military problem was the Soviet long-range bomber threat. In the early 1950s, before intercontinental ballistic missiles dominated strategic planning, U.S. air-defense doctrine assumed that Soviet bombers might approach North America through northern routes, cross Canada or the Great Lakes region, and try to reach metropolitan and industrial targets. The Nike system was the U.S. Army's last-ditch point-defense layer within that larger continental air-defense system. Early-warning radars and interceptor aircraft were intended to detect and engage aircraft farther out. Nike batteries were positioned near the cities and installations that had to be protected if earlier layers failed.

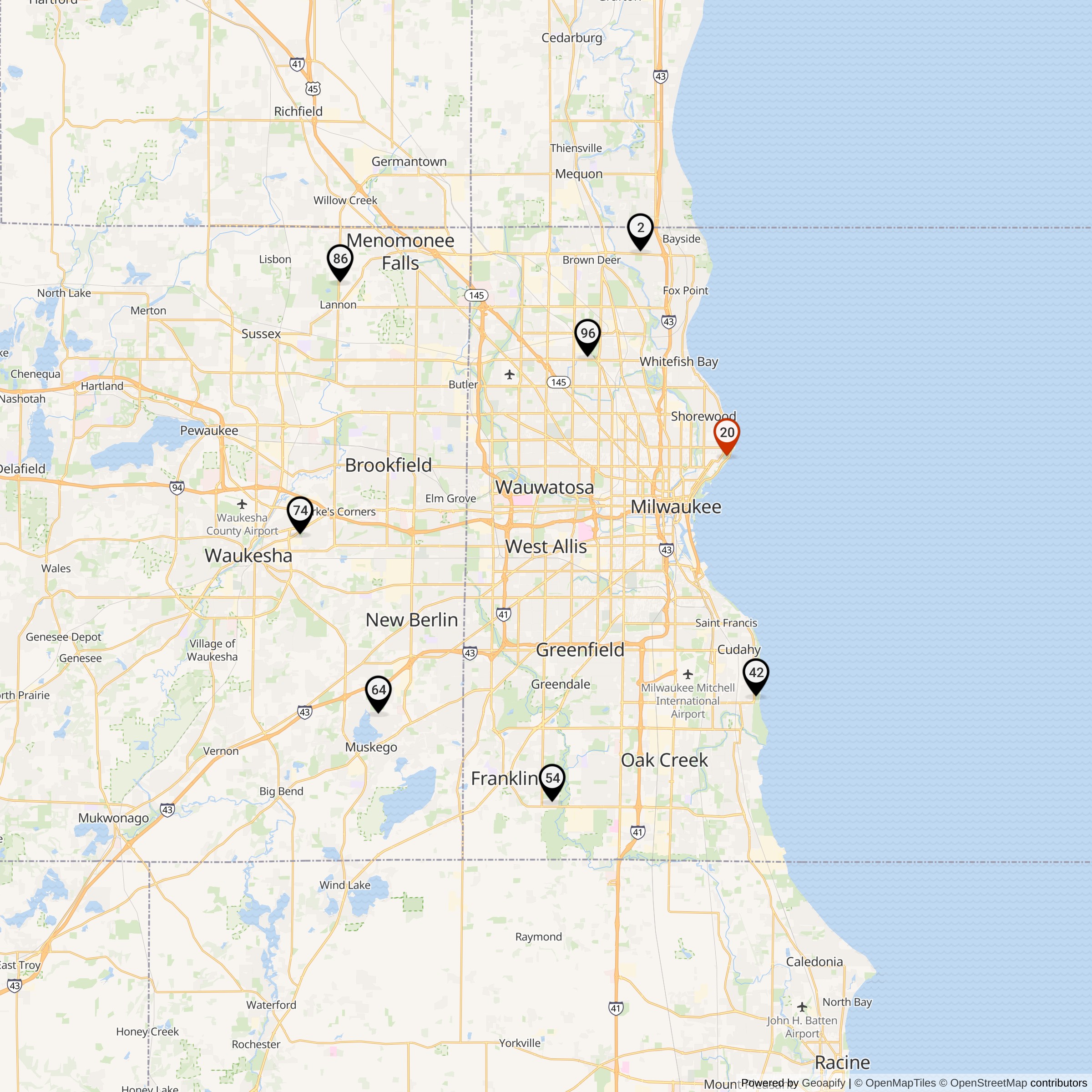

Milwaukee received eight Nike batteries: M-02, M-20, M-42, M-54, M-64, M-74, M-86, and M-96. Headquarters facilities were in Milwaukee. The Chicago District of the U.S. Army Corps of Engineers oversaw land acquisition, design, and construction. The sites were first equipped with Nike Ajax missiles. Three batteries, M-02, M-20, and M-74, were converted to Nike Hercules. The remaining five remained Ajax-only and closed earlier. The Milwaukee Defense Area was later merged with the Chicago-Gary defense system in 1968, after which Milwaukee's remaining defense was tied more closely to the larger Chicago-Milwaukee air-defense complex.

Nike Ajax and Nike Hercules were not intercontinental missiles. They were surface-to-air interceptors. Their mission was to shoot down hostile aircraft, not attack ground targets. The Ajax system used liquid-fueled missiles with conventional warheads. Hercules was larger, solid-fueled, longer-ranged, and capable of carrying either conventional or nuclear warheads. Hercules conversion therefore represented a significant change in the tactical reach, destructive power, and safety profile of a battery. For Milwaukee, that conversion was concentrated at the River Hills/Brown Deer, lakefront/Harbor Drive, and Waukesha batteries.

How a Nike Battery Worked

Each Milwaukee Nike battery was a split installation. The Integrated Fire Control area, or IFC, held the radar and command equipment. The launch area held the missiles, underground magazines, launchers, missile assembly/test functions, security facilities, utilities, and handling areas. The two parts could be separated by a mile or more because they performed different functions. The IFC needed clear radar coverage and suitable geometry for target tracking. The launch area needed enough land for magazines, elevators, launch rails, fueling or missile-handling procedures, roads, fencing, and support buildings.

Nike Ajax was a command-guided system. It did not search for targets on its own. Ground radar detected and tracked the target. A second radar tracked the missile after launch. A computer compared the target and missile tracks and sent steering commands to the missile. The intercept was therefore a coordinated action by the whole battery: acquisition radar, target-tracking radar, missile-tracking radar, fire-control computer, communications equipment, launch crews, and missile handlers all had to function together.

This split-site arrangement is why every site history below treats the IFC and launcher as one installation even when they are mapped as separate points. The launcher could not fight without the IFC, and the IFC had no purpose without the launch area. The battery was the combined system.

Site-Specific History and Setting

M-20 was Milwaukee's lakefront Nike battery, associated with Harbor Drive and the land that became Henry W. Maier Festival Park, the permanent home of Summerfest. Its setting makes it the most publicly recognizable Milwaukee Nike site, even though its military fabric has largely disappeared. Before the missile era, the lakefront tract had been Maitland Field, an early Milwaukee airport. Local historical accounts describe Maitland as a difficult airfield whose runways and landfill setting limited its success. By the mid-1950s, the unused or underused lakefront property offered the Army a large cleared site close to downtown, the harbor, the rail corridor, and industrial Milwaukee.

M-20 entered service in 1957. The Milwaukee ring already included other batteries when the Army secured the lakefront tract, and the site's construction was controversial because it occupied valuable lakefront land. Its purpose, however, was militarily direct: Milwaukee's downtown, harbor, and industrial areas were central targets within the defense area, and an inner lakefront battery gave the Army coverage close to the city core.

M-20 was one of three Milwaukee batteries converted from Nike Ajax to Nike Hercules. Its listed configuration is Nike 3B/18H, 30A/12L-U. The large magazine/launcher configuration matched its importance as a lakefront urban battery. Local history accounts note that the site's Hercules missiles became active in 1958; the broader Military Standard listing gives M-20 as a 1957-June 1971 site, while Milwaukee lakefront histories report that the site was officially decommissioned on September 1, 1969.

During the Hercules period, M-20 was part of the reduced Milwaukee Nike defense. The five Ajax-only sites closed earlier, while M-02, M-20, and M-74 remained the core of the local missile defense. The lakefront battery's location also became increasingly awkward as Milwaukee searched for civic uses for the shoreline. In 1968, the Army denied an early Summerfest request to use nearby land, citing security concerns. By 1969, the Army was already announcing the end of remaining Nike bases, and the M-20 site was transferred into the city's redevelopment future.

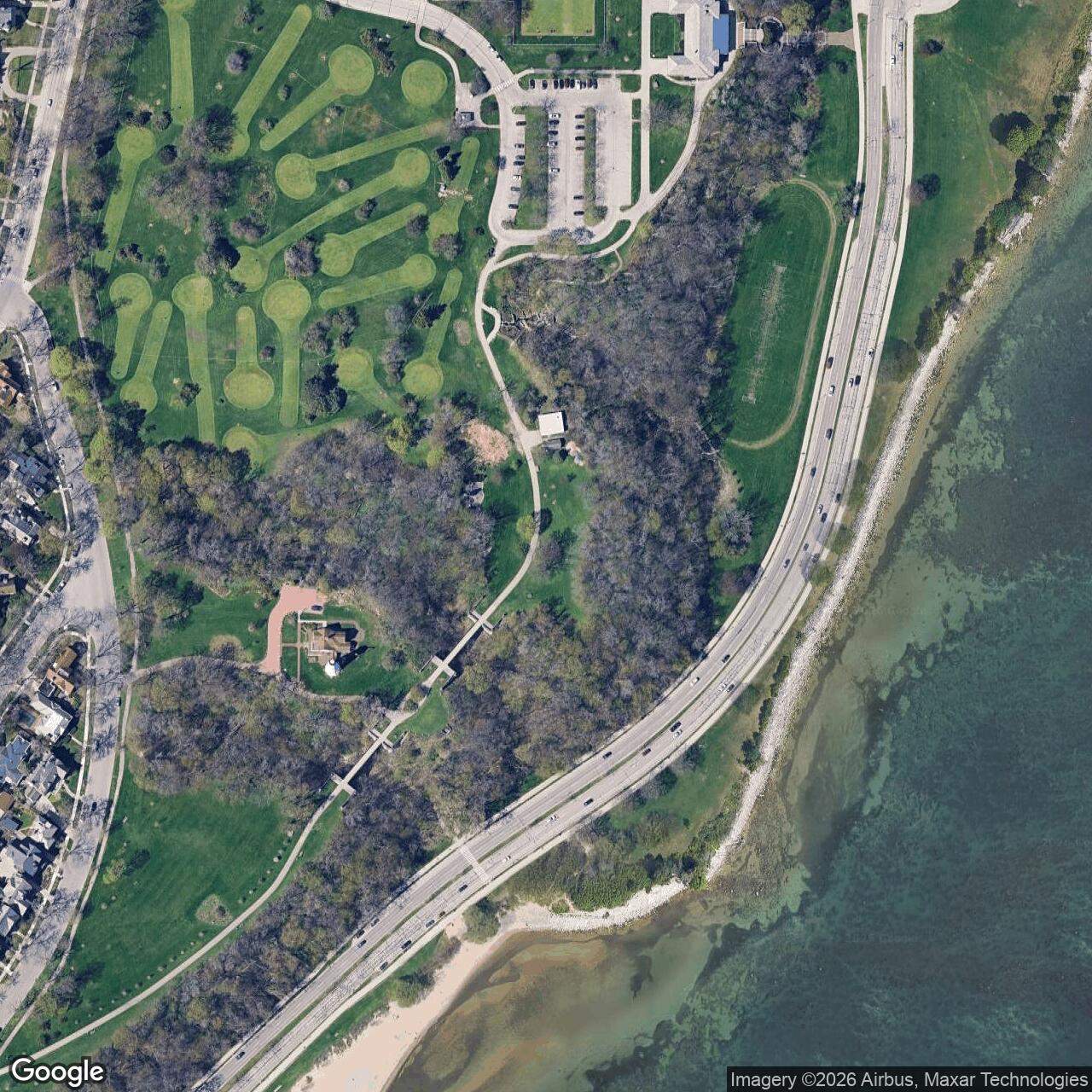

The post-military transformation was dramatic. Former underground magazine areas were filled or otherwise made safe, buildings were removed or reused temporarily, and the lakefront site became the permanent Summerfest grounds in 1970. The conversion from a restricted missile base to a public festival park is one of the clearest examples in the Nike program of a Cold War military landscape being absorbed into civic life.

Chronology

• 1927 Maitland Field opened on Milwaukee's lakefront.
• 1956 The old airfield was leased to the Army for Nike missile use.
• 1957 M-20 became operational as part of the Milwaukee Defense Area.
• 1958-1959 M-20 was converted to Nike Hercules service.
• 1968 The Army denied a Summerfest-related request to use nearby lakefront land because of security concerns.
• 1969-09-01 Milwaukee lakefront histories report official decommissioning of the site.
• 1970 Summerfest moved to the former Nike missile site on the lakefront.
• Present The former battery is part of Henry W. Maier Festival Park.
