Nike Missile Site M-64 IFC, Muskego / Prospect Wisconsin

The Milwaukee Defense Area was created because Milwaukee was not merely a population center. In the 1950s it was a major industrial city, a Lake Michigan port, a railroad and highway hub, and part of the broader Great Lakes industrial belt. Its heavy manufacturing plants, machine shops, foundries, electrical-equipment firms, transportation links, harbor facilities, and proximity to Chicago made it part of a regional military-industrial target system. Local histories often describe Milwaukee in this period as the "Machine Shop of the World," and that description matters for the Nike story: the Army did not ring Milwaukee with missiles because of symbolism alone, but because the city and its surrounding industrial suburbs were considered useful wartime targets.

The immediate military problem was the Soviet long-range bomber threat. In the early 1950s, before intercontinental ballistic missiles dominated strategic planning, U.S. air-defense doctrine assumed that Soviet bombers might approach North America through northern routes, cross Canada or the Great Lakes region, and try to reach metropolitan and industrial targets. The Nike system was the U.S. Army's last-ditch point-defense layer within that larger continental air-defense system. Early-warning radars and interceptor aircraft were intended to detect and engage aircraft farther out. Nike batteries were positioned near the cities and installations that had to be protected if earlier layers failed.

Milwaukee received eight Nike batteries: M-02, M-20, M-42, M-54, M-64, M-74, M-86, and M-96. Headquarters facilities were in Milwaukee. The Chicago District of the U.S. Army Corps of Engineers oversaw land acquisition, design, and construction. The sites were first equipped with Nike Ajax missiles. Three batteries, M-02, M-20, and M-74, were converted to Nike Hercules. The remaining five remained Ajax-only and closed earlier. The Milwaukee Defense Area was later merged with the Chicago-Gary defense system in 1968, after which Milwaukee's remaining defense was tied more closely to the larger Chicago-Milwaukee air-defense complex.

Nike Ajax and Nike Hercules were not intercontinental missiles. They were surface-to-air interceptors. Their mission was to shoot down hostile aircraft, not attack ground targets. The Ajax system used liquid-fueled missiles with conventional warheads. Hercules was larger, solid-fueled, longer-ranged, and capable of carrying either conventional or nuclear warheads. Hercules conversion therefore represented a significant change in the tactical reach, destructive power, and safety profile of a battery. For Milwaukee, that conversion was concentrated at the River Hills/Brown Deer, lakefront/Harbor Drive, and Waukesha batteries.

How a Nike Battery Worked

Nike Ajax was a command-guided system. It did not search for targets on its own. Ground radar detected and tracked the target. A second radar tracked the missile after launch. A computer compared the target and missile tracks and sent steering commands to the missile. The intercept was therefore a coordinated action by the whole battery: acquisition radar, target-tracking radar, missile-tracking radar, fire-control computer, communications equipment, launch crews, and missile handlers all had to function together.

This split-site arrangement is why every site history below treats the IFC and launcher as one installation even when they are mapped as separate points. The launcher could not fight without the IFC, and the IFC had no purpose without the launch area. The battery was the combined system.

Site-Specific History and Setting

The site became operational in 1956. It was an Ajax-only battery and was not selected for Hercules conversion. Its listed configuration is Nike 1B, 2C/30A/12L-A. M-64 remained active longer than the earliest closed Lannon site, but it did not survive into the Hercules-only Milwaukee period. Its published close date is March 1963.

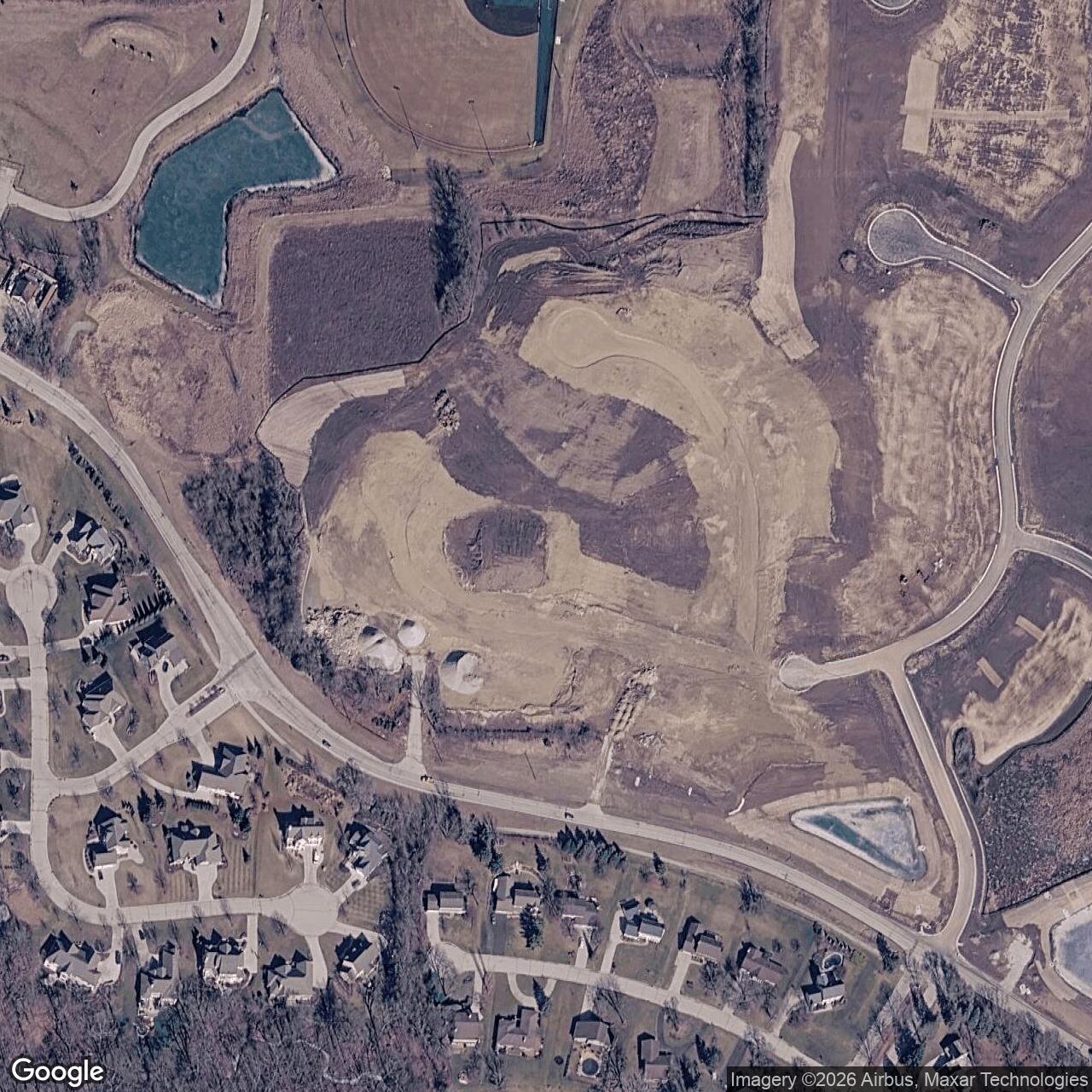

The site's later history is documented mainly through inventories and local site summaries rather than large public interpretive sources. The National Archives Chicago finding aid identifies federal property records for Nike Site M-64 at Muskego, which confirms that the former site generated post-closure federal real-property documentation. Secondary location summaries place the former control center on Martin Drive and the launch area on or near Adrian Drive. They also report that portions of the launch-area fabric, including an assembly building and magazine remnants, survived in degraded private-property condition.

Because M-64 remained Ajax-only, its material profile would have included the hazards and structures associated with Nike Ajax: underground storage magazines, elevators, Ajax launchers, missile assembly/test areas, fueling and handling procedures for liquid-fueled missiles, oxidizer and fuel handling concerns, generator and utility buildings, security fencing, and crew facilities. The site's closure in 1963 fits the broader Milwaukee pattern: Ajax-only sites were shut down as the Army consolidated local defense around the three Hercules batteries.

Chronology

• 1956 M-64 became operational as a Nike Ajax battery.
• 1956-1963 The site operated as an Ajax-only battery defending Milwaukee's western/southwestern approaches.
• 1961 M-64 was among Milwaukee-area sites associated with National Guard-era transitions in secondary summaries.
• 1963-03 M-64 was deactivated.
• Post-closure Federal real-property records for M-64 entered National Archives holdings.
• Present The former site is closed and in private/commercial reuse, with reported degraded launch-area remnants.
