Nike Missile Site M-54 Launcher, Hales Corners / Paynesville Wisconsin
Longitude: -87.98725648007490
This location was part of the Milwaukee Defense Area
Site ID: M-54
Missile / battery configuration: Nike 1B, 2C/30A/12L-A
The missiles at this Launch Area were controlled by the Integrated Fire Control site located here.
Site Role: Launcher
A typical Nike air defense site consisted of two separate parcels of land. One area was known as the Integrated Fire Control (IFC) Area. This site contained the Nike system's ground-based radar and computer systems designed to detect and track hostile aircraft, and to guide the missiles to their targets.
The second parcel of land was known as the Launcher Area. At the launcher area, Nike missiles were stored horizontally within heavily constructed underground missile magazines. A large, missile elevator brought the Nikes to the surface of the site where they would be pushed across twin steel rails to one of four satellite launchers.
Elaboration on how Nike worked here.
Missile Type: Ajax
The Nike Ajax was the first in the Army's family of guided missiles, and the world's first operational, guided, surface-to-air missile system. Nike Ajax had a burnout speed of Mach 2.3, a range of 25-30 miles, and a ceiling of 65,000 feet.
Designed to carry either nuclear and/or high-explosive warheads, the Nike Hercules missile could attack supersonic aircraft operating at altitudes in excess of 150,000 feet and at a range of more than 87 miles.
The Milwaukee Defense Area was created because Milwaukee was not merely a population center. In the 1950s it was a major industrial city, a Lake Michigan port, a railroad and highway hub, and part of the broader Great Lakes industrial belt. Its heavy manufacturing plants, machine shops, foundries, electrical-equipment firms, transportation links, harbor facilities, and proximity to Chicago made it part of a regional military-industrial target system. Local histories often describe Milwaukee in this period as the "Machine Shop of the World," and that description matters for the Nike story: the Army did not ring Milwaukee with missiles because of symbolism alone, but because the city and its surrounding industrial suburbs were considered useful wartime targets.
The immediate military problem was the Soviet long-range bomber threat. In the early 1950s, before intercontinental ballistic missiles dominated strategic planning, U.S. air-defense doctrine assumed that Soviet bombers might approach North America through northern routes, cross Canada or the Great Lakes region, and try to reach metropolitan and industrial targets. The Nike system was the U.S. Army's last-ditch point-defense layer within that larger continental air-defense system. Early-warning radars and interceptor aircraft were intended to detect and engage aircraft farther out. Nike batteries were positioned near the cities and installations that had to be protected if earlier layers failed.
Milwaukee received eight Nike batteries: M-02, M-20, M-42, M-54, M-64, M-74, M-86, and M-96. Headquarters facilities were in Milwaukee. The Chicago District of the U.S. Army Corps of Engineers oversaw land acquisition, design, and construction. The sites were first equipped with Nike Ajax missiles. Three batteries, M-02, M-20, and M-74, were converted to Nike Hercules. The remaining five remained Ajax-only and closed earlier. The Milwaukee Defense Area was later merged with the Chicago-Gary defense system in 1968, after which Milwaukee's remaining defense was tied more closely to the larger Chicago-Milwaukee air-defense complex.
Nike Ajax and Nike Hercules were not intercontinental missiles. They were surface-to-air interceptors. Their mission was to shoot down hostile aircraft, not attack ground targets. The Ajax system used liquid-fueled missiles with conventional warheads. Hercules was larger, solid-fueled, longer-ranged, and capable of carrying either conventional or nuclear warheads. Hercules conversion therefore represented a significant change in the tactical reach, destructive power, and safety profile of a battery. For Milwaukee, that conversion was concentrated at the River Hills/Brown Deer, lakefront/Harbor Drive, and Waukesha batteries.
How a Nike Battery Worked
Each Milwaukee Nike battery was a split installation. The Integrated Fire Control area, or IFC, held the radar and command equipment. The launch area held the missiles, underground magazines, launchers, missile assembly/test functions, security facilities, utilities, and handling areas. The two parts could be separated by a mile or more because they performed different functions. The IFC needed clear radar coverage and suitable geometry for target tracking. The launch area needed enough land for magazines, elevators, launch rails, fueling or missile-handling procedures, roads, fencing, and support buildings.Nike Ajax was a command-guided system. It did not search for targets on its own. Ground radar detected and tracked the target. A second radar tracked the missile after launch. A computer compared the target and missile tracks and sent steering commands to the missile. The intercept was therefore a coordinated action by the whole battery: acquisition radar, target-tracking radar, missile-tracking radar, fire-control computer, communications equipment, launch crews, and missile handlers all had to function together.
This split-site arrangement is why every site history below treats the IFC and launcher as one installation even when they are mapped as separate points. The launcher could not fight without the IFC, and the IFC had no purpose without the launch area. The battery was the combined system.
Site-Specific History and Setting
M-54 was the Hales Corners / Paynesville Nike Ajax battery in the southwestern part of the Milwaukee Defense Area. Its position helped cover inland southwestern approaches to Milwaukee and formed part of the overlapping ring that protected the city from bomber attack. The site also helped connect the Milwaukee missile ring to the broader Great Lakes defense geography stretching toward Chicago.M-54 entered service in 1956 and remained an Ajax-only site. It was not one of the three batteries selected for Hercules conversion. Its listed configuration is Nike 1B, 2C/30A/12L-A. Like M-42, M-64, M-86, and M-96, its military life was shorter than that of the Hercules-converted batteries. The published service-date listing gives closure in August 1961.
Public site-specific documentation for M-54 is thinner than for Cudahy, Waukesha, Havenwoods, or the lakefront battery. Secondary Milwaukee-area summaries describe the site as possibly having been concentrated on one general tract, with later private-property and business-park reuse. The broader Nike pattern still allows a careful reconstruction of its function: the IFC tracked targets and controlled engagements, while the launch area stored and raised Ajax missiles from underground magazines.
The Hales Corners / Paynesville location also mattered because the southwestern side of Milwaukee was transitioning from rural and semi-rural land to suburban and institutional uses. Nike construction often took advantage of such edge landscapes. They were close enough to defend the city, but far enough from dense urban blocks to provide room for launchers, magazines, radar, security fencing, and safety clearances.
Chronology
- 1956 M-54 became operational as a Nike Ajax battery in the Milwaukee Defense Area.
- 1956-1961 The site operated as an Ajax-only battery.
- 1961-08 M-54 was deactivated.

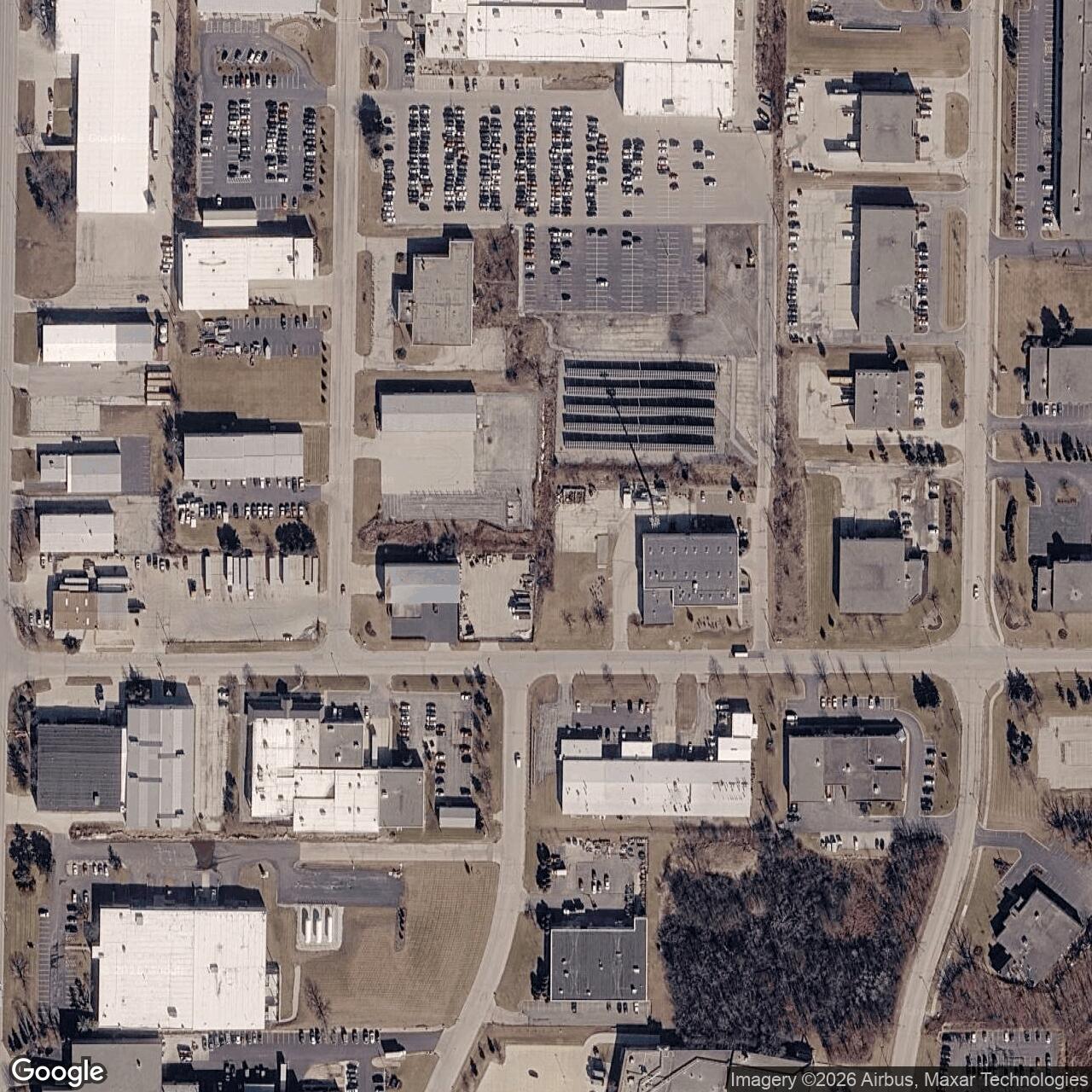

- Post-closure The former site area was redeveloped or absorbed into institutional/private land uses.
- Present No major publicly interpreted Nike remains are known at M-54.
