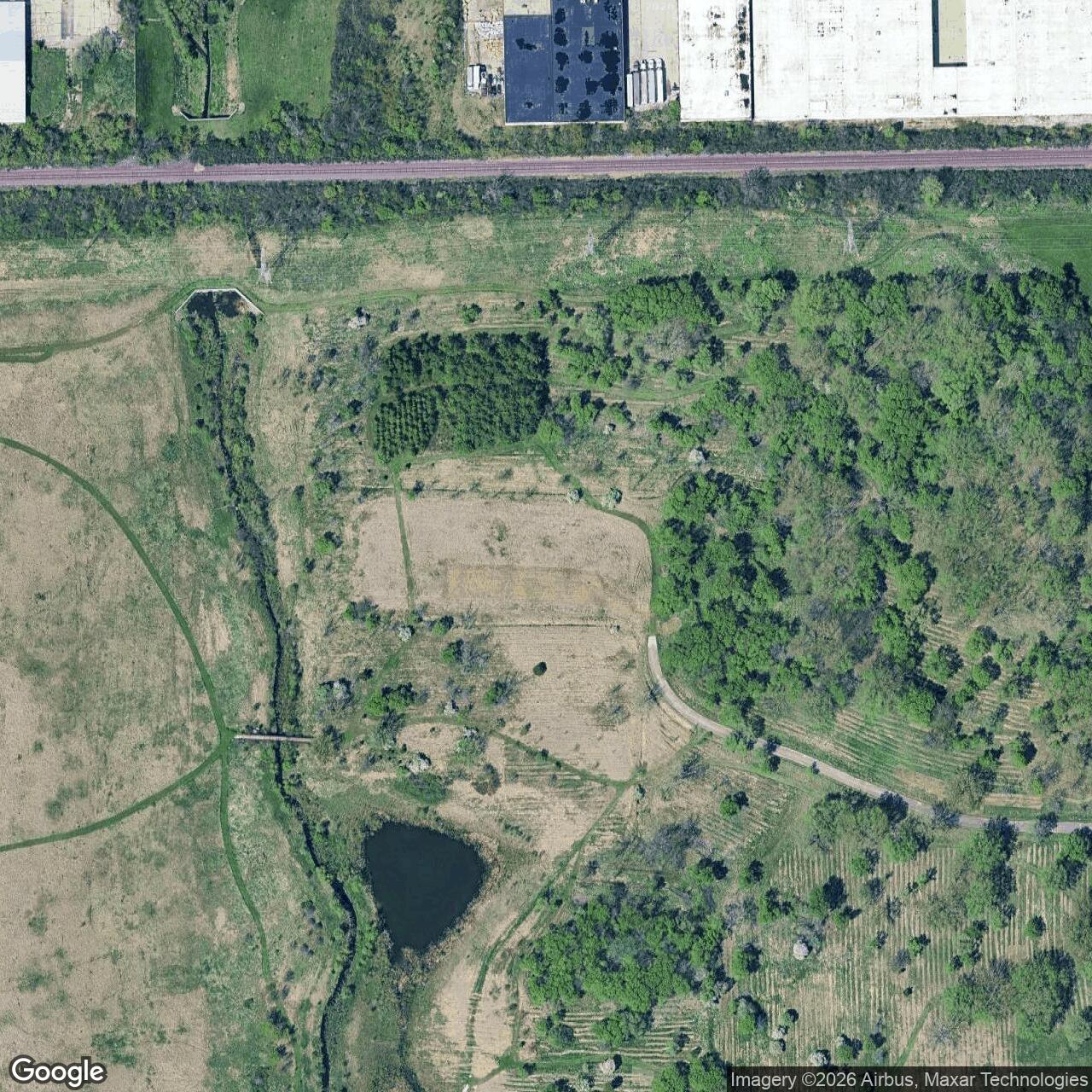

Nike Missile Site M-96 Launcher, Milwaukee / Silver Spring Wisconsin

The Milwaukee Defense Area was created because Milwaukee was not merely a population center. In the 1950s it was a major industrial city, a Lake Michigan port, a railroad and highway hub, and part of the broader Great Lakes industrial belt. Its heavy manufacturing plants, machine shops, foundries, electrical-equipment firms, transportation links, harbor facilities, and proximity to Chicago made it part of a regional military-industrial target system. Local histories often describe Milwaukee in this period as the "Machine Shop of the World," and that description matters for the Nike story: the Army did not ring Milwaukee with missiles because of symbolism alone, but because the city and its surrounding industrial suburbs were considered useful wartime targets.

The immediate military problem was the Soviet long-range bomber threat. In the early 1950s, before intercontinental ballistic missiles dominated strategic planning, U.S. air-defense doctrine assumed that Soviet bombers might approach North America through northern routes, cross Canada or the Great Lakes region, and try to reach metropolitan and industrial targets. The Nike system was the U.S. Army's last-ditch point-defense layer within that larger continental air-defense system. Early-warning radars and interceptor aircraft were intended to detect and engage aircraft farther out. Nike batteries were positioned near the cities and installations that had to be protected if earlier layers failed.

Milwaukee received eight Nike batteries: M-02, M-20, M-42, M-54, M-64, M-74, M-86, and M-96. Headquarters facilities were in Milwaukee. The Chicago District of the U.S. Army Corps of Engineers oversaw land acquisition, design, and construction. The sites were first equipped with Nike Ajax missiles. Three batteries, M-02, M-20, and M-74, were converted to Nike Hercules. The remaining five remained Ajax-only and closed earlier. The Milwaukee Defense Area was later merged with the Chicago-Gary defense system in 1968, after which Milwaukee's remaining defense was tied more closely to the larger Chicago-Milwaukee air-defense complex.

Nike Ajax and Nike Hercules were not intercontinental missiles. They were surface-to-air interceptors. Their mission was to shoot down hostile aircraft, not attack ground targets. The Ajax system used liquid-fueled missiles with conventional warheads. Hercules was larger, solid-fueled, longer-ranged, and capable of carrying either conventional or nuclear warheads. Hercules conversion therefore represented a significant change in the tactical reach, destructive power, and safety profile of a battery. For Milwaukee, that conversion was concentrated at the River Hills/Brown Deer, lakefront/Harbor Drive, and Waukesha batteries.

How a Nike Battery Worked

Nike Ajax was a command-guided system. It did not search for targets on its own. Ground radar detected and tracked the target. A second radar tracked the missile after launch. A computer compared the target and missile tracks and sent steering commands to the missile. The intercept was therefore a coordinated action by the whole battery: acquisition radar, target-tracking radar, missile-tracking radar, fire-control computer, communications equipment, launch crews, and missile handlers all had to function together.

This split-site arrangement is why every site history below treats the IFC and launcher as one installation even when they are mapped as separate points. The launcher could not fight without the IFC, and the IFC had no purpose without the launch area. The battery was the combined system.

Site-Specific History and Setting

The Wisconsin Department of Natural Resources states that the Army constructed a Nike Ajax missile base at Havenwoods in 1956, one of eight Nike sites encircling Milwaukee to protect the city from long-range bombers, and that the site was abandoned in 1963. DNR also records that the U.S. Army Reserve used Havenwoods as a training facility from about 1950 to 1967, that the city used parts of the land as a landfill from 1958 to 1970, that the Army declared the land surplus in 1974, and that the property became a state forest in 1980. This official DNR account is the strongest current-status source for the M-96 landscape.

The site remained Ajax-only. Its listed configuration is Nike 1B, 2C/30A/12L-A. It was not one of the three Milwaukee batteries converted to Hercules. Because of that, it should be treated as a 1956-March 1963 Ajax site, despite a conflict in some DoD-derived tables that associate M-96 with a June 1971 close date. DNR's site-specific history and other Milwaukee-area summaries support abandonment in 1963.

M-96 was also associated with the Army's broader command and support footprint on the north side. Secondary summaries link the M-96 area to headquarters battery / Maitland Field-era planning references and to an Army Air Defense Command Post that later used BIRDIE equipment after command-and-control modernization. The key site-level point is that the Silver Spring/Havenwoods area was more than a launcher; it was part of a military landscape that included barracks, training, reserve activity, landfill use, and later surplus disposal.

Today, Havenwoods State Forest is Wisconsin's only urban state forest. DNR describes it as 237 acres of grasslands, woods, and wetlands within Milwaukee, with more than six miles of trails and a nature center. WUWM's history of the property emphasizes the layered military and penal past, including the 1956-1963 Nike anti-aircraft missile use and the 1978 transfer toward DNR stewardship. The former Nike base is therefore part of a larger public story about environmental recovery after intensive institutional and military land use.

Chronology

• 1945 The U.S. Army seized the Milwaukee County House of Correction property for use as an Army Disciplinary Barracks.
• 1950 DNR states the last military prisoners left the disciplinary-barracks property by this year.
• 1950-1967 The U.S. Army Reserve used Havenwoods as a training facility.
• 1956 The Army constructed the Nike Ajax base at Havenwoods / Silver Spring.
• 1956-1963 M-96 operated as one of Milwaukee's eight Nike air-defense sites.
• 1958-1970 Parts of the land were used as a city landfill.
• 1963-03 The Nike Ajax site was abandoned/deactivated according to the best site-specific DNR-supported history.
• 1974 The Army declared the land surplus.
• 1978 The City of Milwaukee transferred ownership of Havenwoods toward DNR stewardship.
• 1980 Havenwoods became a state forest.
• Present Havenwoods State Forest is Wisconsin's only urban state forest and preserves the layered history of the former military landscape.
