Minuteman Launch Facility T-11 (Tango-11 LF), Guernsey Wyoming

Latitude: 42.112222
Longitude: -104.867500

View on Google Maps

Site Type: Missile Launch Facility - Silo
A LF consists of a launcher and an associated launch facility support building (LFSB). All facilities are enclosed within a security fence. The sites average about 1.6 acres in size and holds one missile.

Missile Type: LGM-30B Minuteman I; LGM-30G Minuteman III; LGM-118A Peacekeeper

Parent Base: F.E. Warren AFB

Missile Wing: 90th Missile Wing; 90th Strategic Missile Wing during SAC era

Missile Squadron: 400th Missile Squadron (former Peacekeeper-converted field)

Permanent Installation Number: 8514

Installation Location Code: GJAD

Missile Activated: June, 1965


Missile Deactivated September 19, 2005


Current Site Use: Former Minuteman / Peacekeeper launch facility; missile removed; current parcel reuse not verified.

Site Ownership: Former U.S. Air Force missile-field property; post-disposal parcel ownership not verified.

Accessible: No public access confirmed; view only from public roads where legal; do not enter fenced, posted, or private property.

How the Peacekeeper Missile Worked

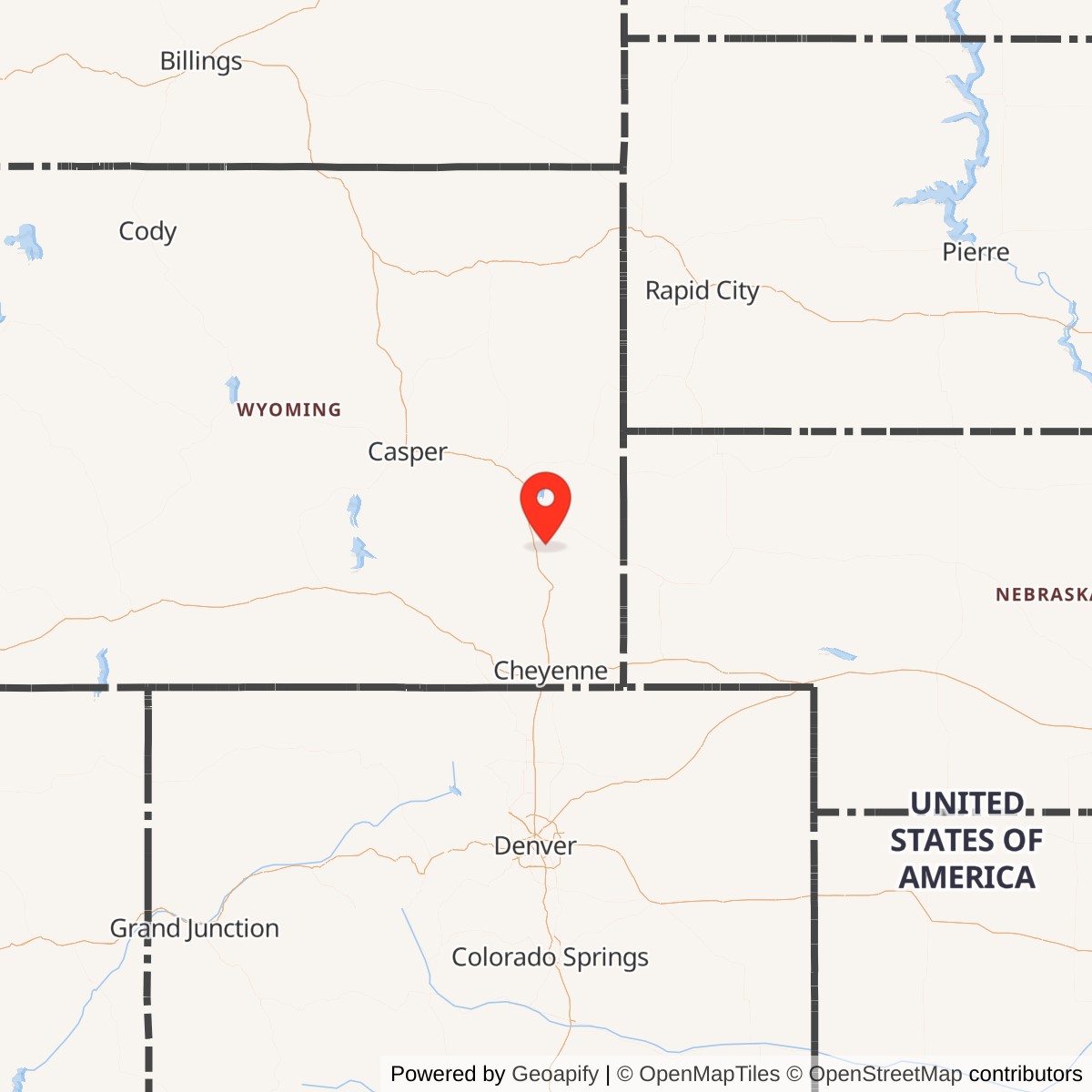

Map showing location of Minuteman Launch Facility T-11, Wyoming
Map 1: Showing location of Minuteman Launch Facility T-11, Wyoming

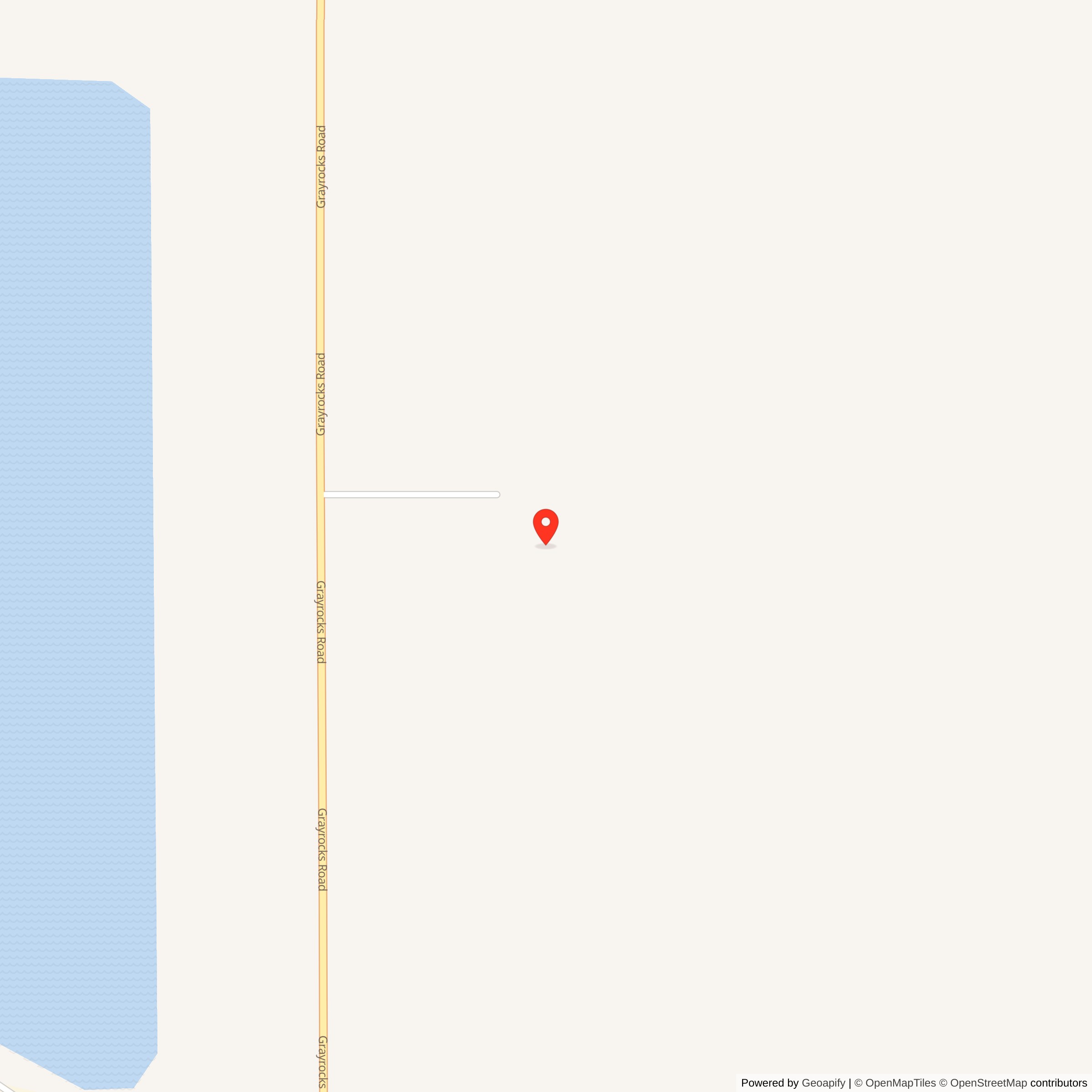

Map Showing Street Level location of Minuteman Launch Facility T-11, Wyoming
Map 2: Showing Street level location of Minuteman Launch Facility T-11, Wyoming

Launch Facility T-11 was an unmanned missile silo assigned to T-01 Missile Alert Facility and Tango Flight in the F.E. Warren missile field. The public Peacekeeper field listing identifies it as Francis E. Warren AF Missile Site T-11, PIN 8514, ILC GJAD, at 42-06-44, 104-52-03. That converts to approximately 42.112222, -104.867500 in Platte County, Wyoming, near Guernsey.

T-11 began as part of the F.E. Warren Minuteman force, later served in the Minuteman III field, and then became one of the launch facilities converted for the LGM-118A Peacekeeper under the 400th Missile Squadron. It is no longer an active missile facility. The Peacekeeper mission at F.E. Warren ended on 2005-09-19.

T-11 sat in open rural Platte County country north-northwest of the T-01 control site and generally south of Guernsey. The 2013 silo-elimination environmental assessment notes that the Laramie River is located about one mile north of LF T-11, giving this otherwise isolated launch-facility page a useful public landscape reference. The coordinate used here marks the former launch-facility location, not a public visitor site. No public access was confirmed; the site should be treated as private or otherwise restricted property unless current land records or posted access information show otherwise.

As a Launch Facility, T-11 was normally unmanned. Missile crews served at the associated T-01 Missile Alert Facility / Launch Control Center, while maintenance, communications, and security teams visited the launch facility as needed. Public exterior photos from 2013 show general views of the former launch-facility area.

T-11 is a decommissioned former Minuteman / Peacekeeper launch facility. The missile is gone, and the site was part of the broader New START-era disposal framework for former Peacekeeper launch facilities at F.E. Warren. Parcel-level current ownership and reuse were not verified.

For the full Tango Flight narrative, see T-01 Missile Alert Facility / Launch Control Center

Chronology

  • 1963 The 90th Strategic Missile Wing was activated at F.E. Warren during the Minuteman buildup.
  • 1965-06 The F.E. Warren Minuteman force was in the fully operational era; T-11 belonged to the Tango Flight launch-facility network.
  • 1975 Minuteman III replaced Minuteman I at F.E. Warren.
  • 1986 The Peacekeeper became operational at F.E. Warren.
  • 1988 Fifty Peacekeeper missiles were in service at F.E. Warren.
  • 2005-09-19 The Peacekeeper mission at F.E. Warren ended.
  • 2007-06 A Tank Closure Report for Launch Facility Tango-11, F.E. Warren AFB, Wyoming, was listed in the 2013 silo-elimination environmental assessment bibliography.
  • 2011-02-05 New START entered into force.
  • 2013-08-02 Public photographs of T-11 were published in the AirForceBase.net Peacekeeper field photo set.
  • 2013 The Final Environmental Assessment for Minuteman III and Peacekeeper Silo Elimination addressed former Peacekeeper launch facilities and associated missile alert facilities at F.E. Warren.
  • 2018-02-04 New START required covered silo-elimination work to be completed by this date.

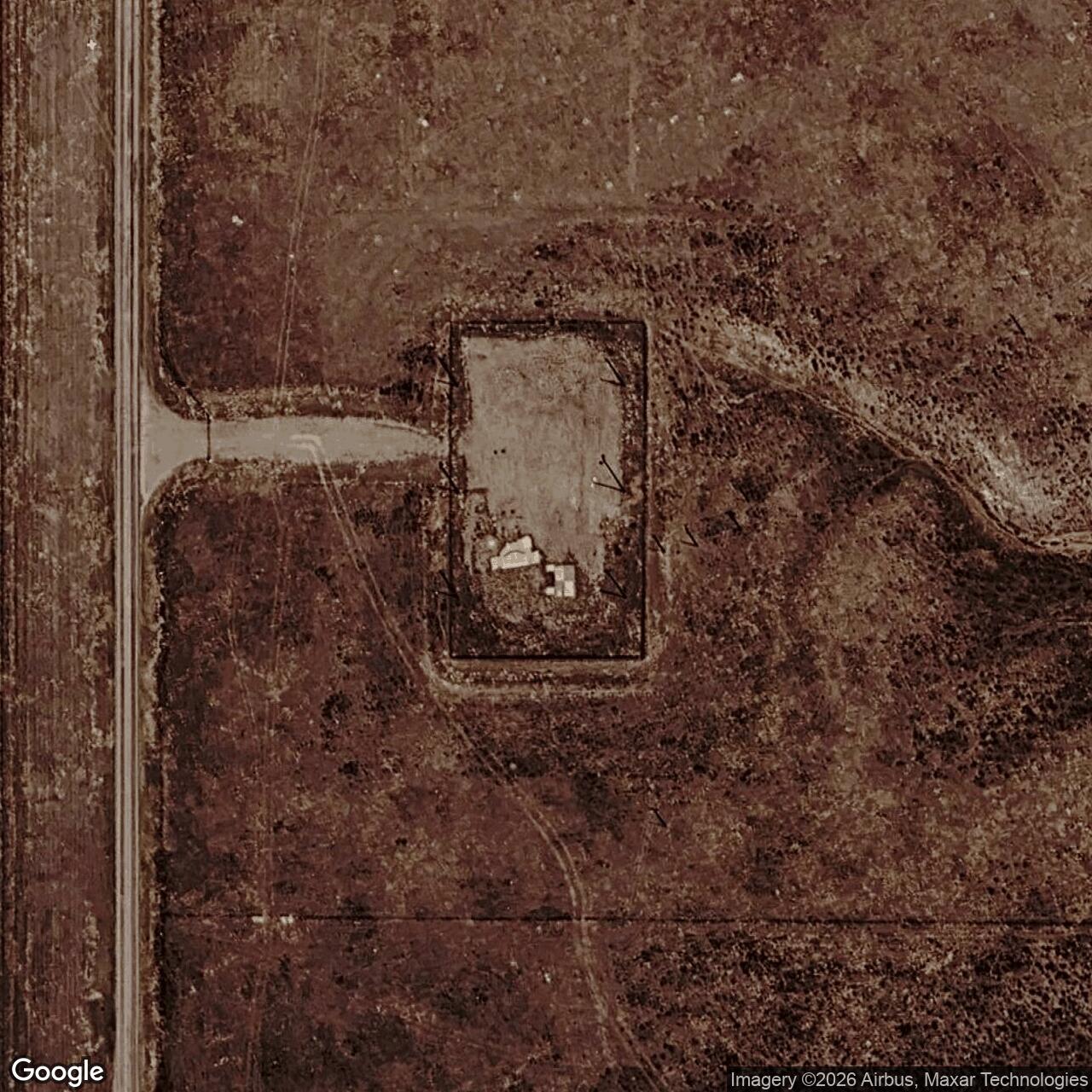

Current Google Satellite Image of Minuteman Launch Facility T-11, Wyoming
Aerial View 1: Current Google Satellite Image of Minuteman Launch Facility T-11, Wyoming Source: Google Maps - Click to View

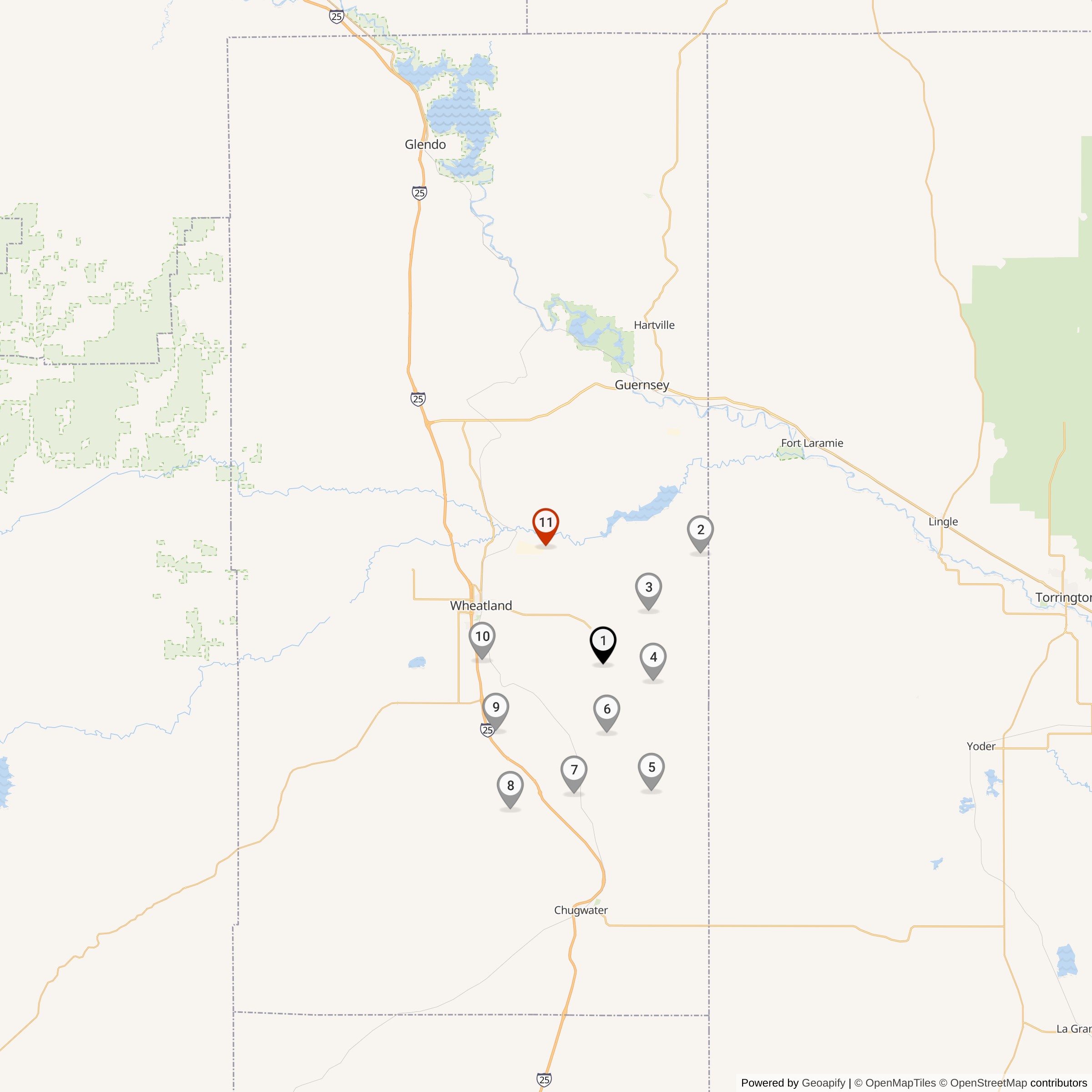

Map Showing Tango Flight Missile Silos & MAF Locations
Map 3: Map Showing Tango Flight Missile Silos & MAF Locations Red Marker Shows Tango-11 LF Location, Black Show MAF Location, Grey Shows the other Silos in the Flight
